Wedge Flow Meter

Flow Measurement Excellence

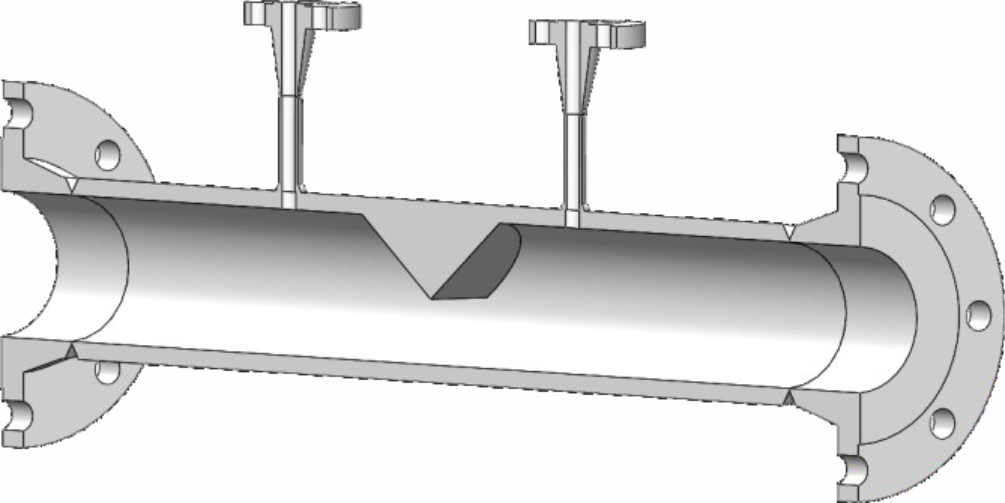

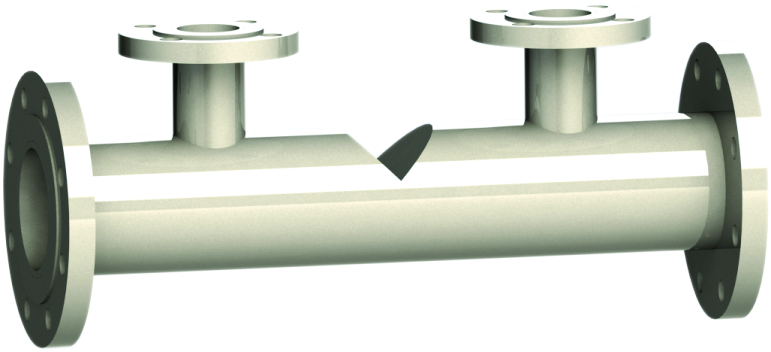

  • Hydropneumatics Wedge Flow Meter is an advance differential pressure instrument designed per ISO 5167-6. The instrument is made for difficult- to-meter line fluids, particle-laden media, high viscous liquids or slurry liquids, which are abrasive or fibrous
  • These devices are low maintenance with no moving parts and easy to handle and simple to Install and operate.
  • Available in MOC suitable to your process needs ranging from Austenitic steels, Nickel Alloys, PVC, PTFE and Stellate coated.
Salient Features
  • Specifically designed for very high and very low Reynolds number.
  • Bi-directional flow measurement
  • Low permanent pressure loss
  • ±0.5% accuracy, ±0.2% repeatability
  • Pre-calibrated with 12 points across its full scale
Models Suitable for your needs
  • WFE400# - Wedge Flow Element
  • WFE400#S - Wedge Flow Element with smart meter

Previous Track Record

  • EPMC - Gulf Spic General Trading & Constructing Company W.L.L
  • Client - Yokogawa Middle East & Africa B.S.C.(C)
  • End-user - Kuwait National Petroleum Company
  • Project - Debottle Necking of Coker Unit (U-20)MAB
  • Description - Wedge Flow Meter ISO 5167-6:2019
  • MOC - A387 GR.5 / A335 GR. P5
  • Quantity - 16 Nos
