Integral Orifice Plate and Assemblies

Flow Measurement Excellence
  • Hydropneumatics Orifice Plate range is the most cost-effective Differential Pressure Measurement in accordance with ISO 5167-2, ISO TR-15377, AGA3 and ASME MFC-3M.
  • These devices are low maintenance with no moving parts and easy to handle and simple to install and operate.
  • Available in MOC suitable to your process needs ranging from Austenitic steels, Nickel Alloys, PVC, PTFE and Stellate coated.

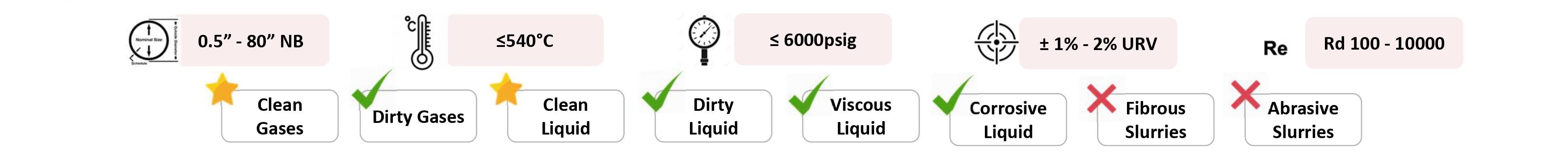

Available Designs / Customizations
  • Square Edge Orifice Plates
    • - Process Flow Measurement of hydrocarbons, most gases and liquids
    - Custody Transfer and fiscal flow metering
  • Simple measurement
  • Conical Entrance & Quarter Circle
    • - Flow measurement of viscous fluids
    - Applications with low Reynolds numbers
  • Eccentric Plates & Segmental Plates
    • - Flow Measurement of dirty and contaminated fluids
    - Flow metering of fluids with suspended solids or entrained gas
Models Suitable for your need

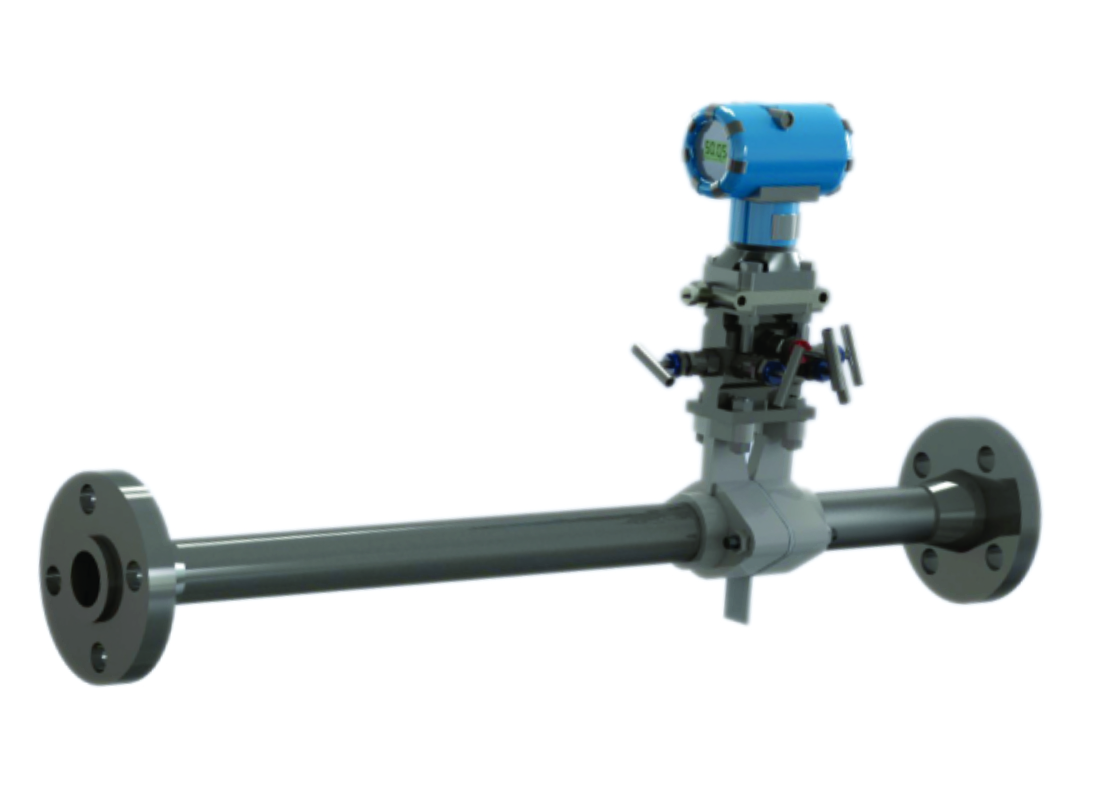

  • FE410#IMR - Orifice Integral Meter Run Assembly
  • FE510#CR - Orifice Integral Meter Run Assembly with Carrier Ring
  • FE510#C Orifice Integral Compact Design with Temperature Compensation

Integral Orifice Plate and Assemblies

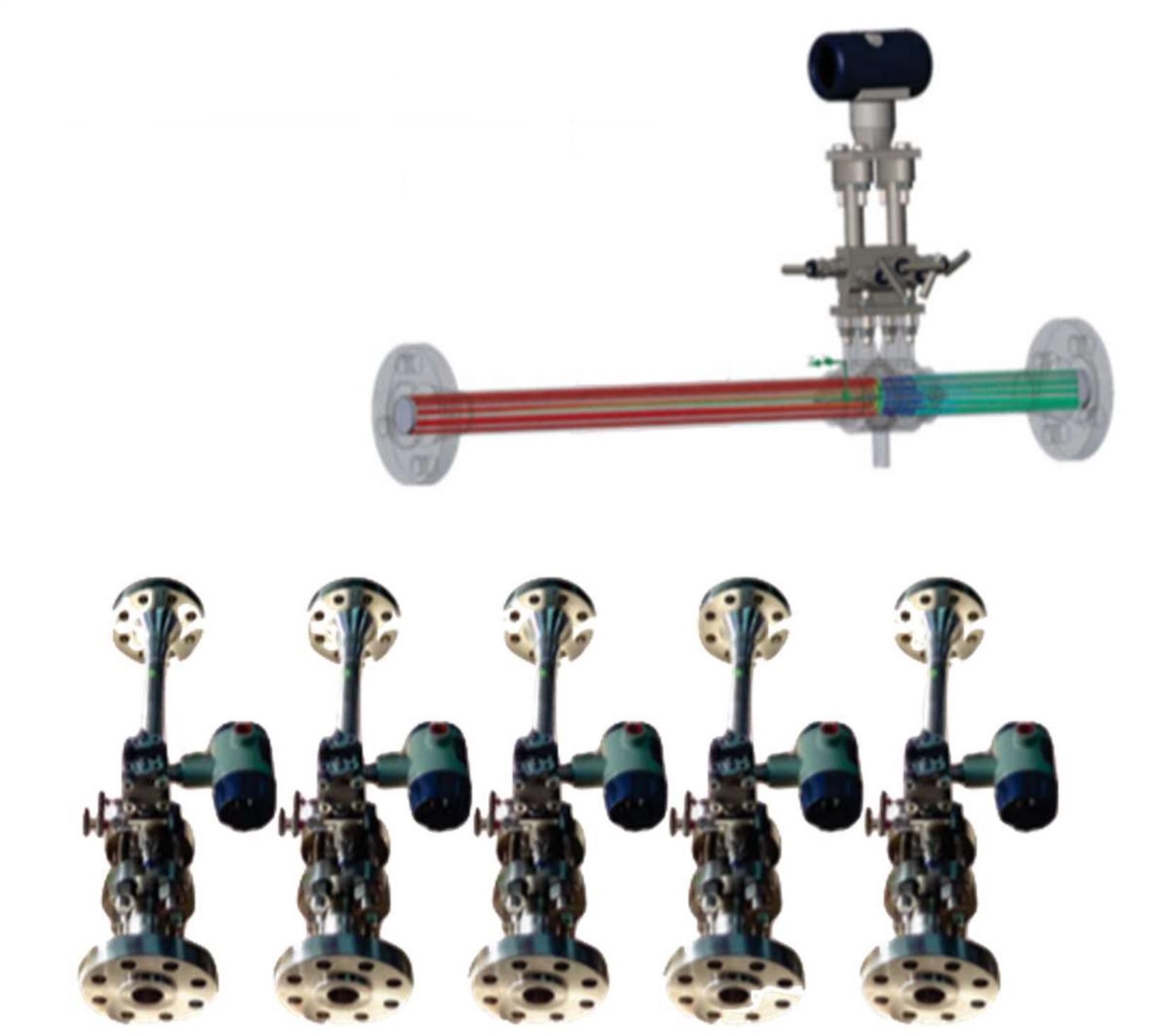

  • Client: Honeywell M.E. Abu Dhabi.
  • EPMC: Petrofac. Sharjah.
  • Project: Turkmengaz, South Yolten Gas field Development
  • Description: Dual Grade SS316/SS316L, NACE MR 0103
  • Quantity: 29 Nos
  • Salient Features:Used on high-pressure service of up to 1500#, All Weld Joints but welded and 100% radiographed.

Integral Orifice Plate and Assemblies – O2 Cleaning

  • Client: Emerson Process Management India Pvt Ltd.
  • DEC/Licensor: Fluor
  • Project: Reliance Jamnager 3 expansion, Gasification Unit
  • Description: Dual Grade SS316/SS316L, NACE MR 0103
  • Quantity: 32 Nos
  • Salient Features: OXYGEN -cleaned as per ASTM G91-3, Cleaning Methods and Cleanliness Levels for Material and Equipment Used in Oxygen-Enriched Environments.
