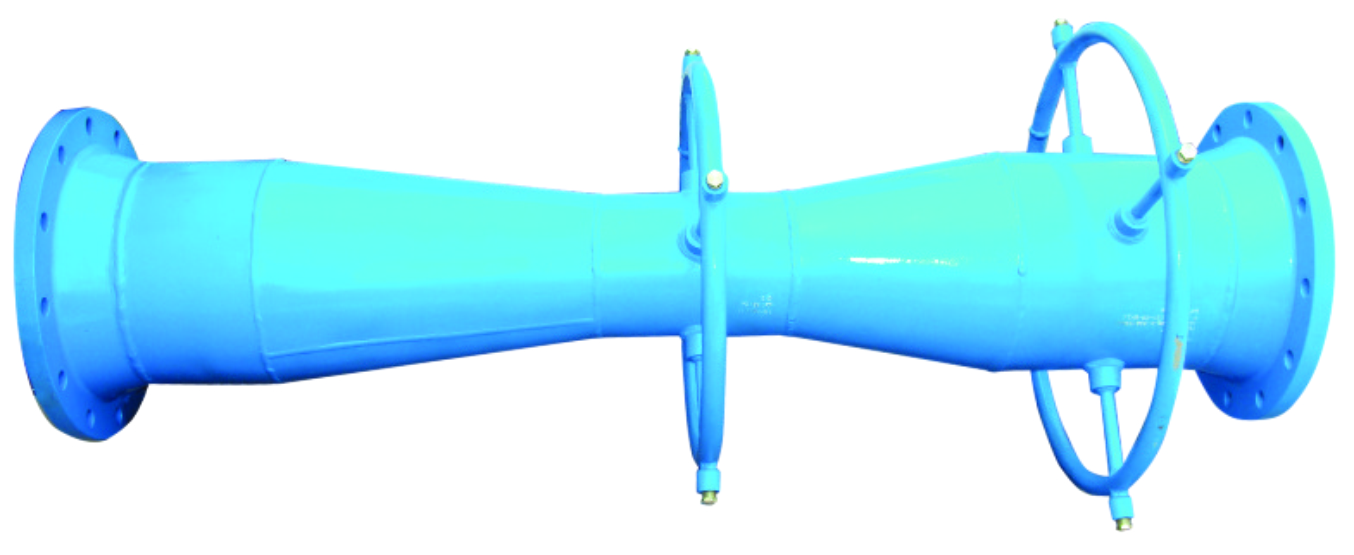

Venturi Tube

Flow Measurement Excellence
  • Hydropneumatics offers Venturi Meter designs in accordance with ISO 5167-4. Venturi meters are very versatile and can be used for measuring in a multitude of flow measurement application with no constraints or limitation of line, sizes, and material.
  • Venturi meters are reliable, easy to use, and low-maintenance. The main advantages of a Venturi meter over other differential pressure flow meters are the higher pressure recovery and suited for measurement in systems with a low pressure differential.
Available Designs / Customizations
  • Construction Designs
  • Single Forged / bar stock construction

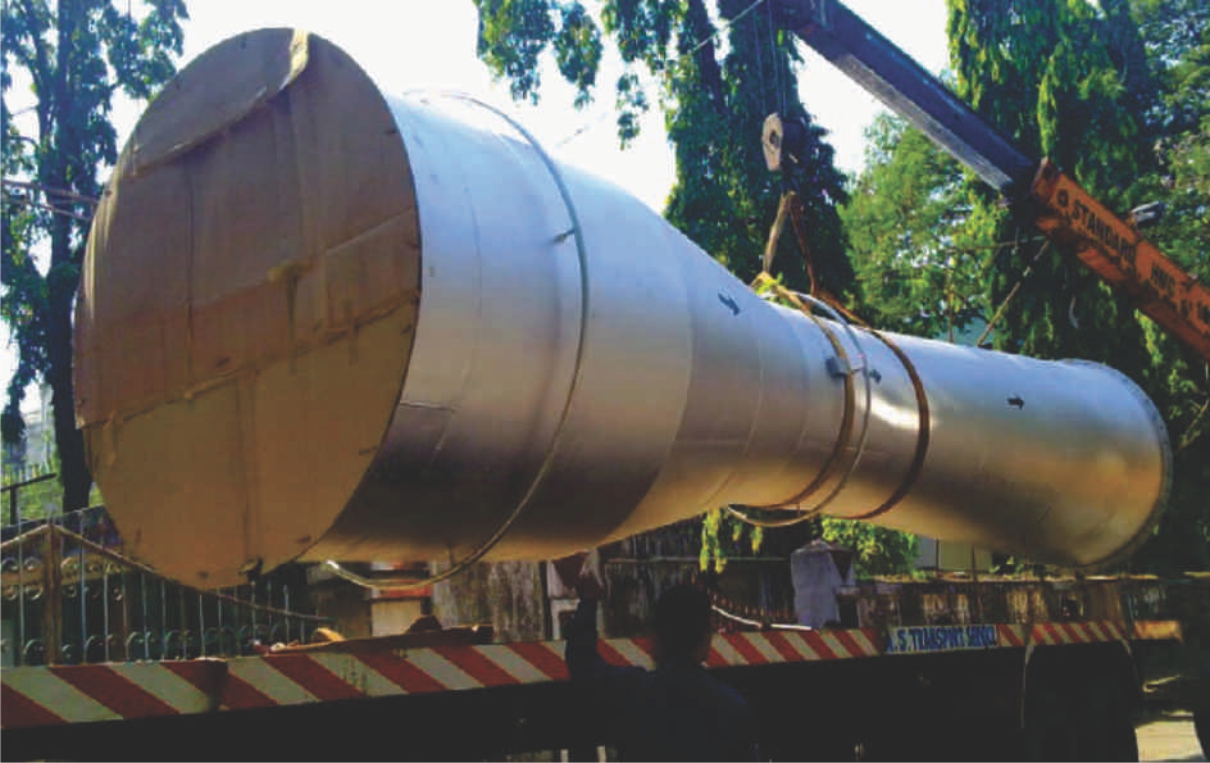

  • Fabricated Venturi from rolled sheet metal
  • Classic Venturi with 15 ° exit angle
  • Low loss Venturi with 7 ° exit angle
  • Truncated / Non Truncated Venturi
  • Rectangle duct flow measurement Venturi
  • Venturi with inspection ports
  • Venturi with Piezometric ring for low flow sensing
Models Suitable for your need
  • VT500# - Series Classic Venturi Tube with forged components fabricated with circular seam joints
  • VT400 F#- Series Classical Venturi Tube - Fabricated
  • VT400 M# - Series Classical Venturi Tube - Machined
  • VN 400# M - Series Venturi Nozzle
  • VN 400# F - Series Venturi Nozzle

Previous Track Record

  • Client - Larsen and Toubro Ltd
  • Project - ONGC Mangalore Petrochemicals Ltd
  • PMC - Toyo Engineering
  • Description - Machined Venturi as per ISO 5167
  • Material - SS 316/SS316L Dual Grade NACE
  • Quantity - 2 Nos
  • Salient feature -
    • - Achieved a discharge co-efficient of 0.99989 during the 24 point wet calibration done at FCRI Palakkad.
