Averaging Bar

Flow Measurement Excellence
  • Hydropneumatics Orifice Plate range is the most cost-effective Differential Pressure Measurement in accordance with ISO 5167-2, ISO TR-15377, AGA3 and ASME MFC-3M.
  • These devices are low maintenance with no moving parts and easy to handle and simple to install and operate.
  • Available in MOC suitable to your process needs ranging from Austenitic steels, Nickel Alloys, PVC, PTFE and Stellate coated.
Available Designs / Customizations
  • Square Edge Orifice Plates
  • - Process Flow Measurement of hydrocarbons, most gases and liquids
    - Custody Transfer and fiscal flow metering
  • Simple measurement
  • Conical Entrance & Quarter Circle
  • - Flow measurement of viscous fluids
    - Applications with low Reynolds numbers
  • Eccentric Plates & Segmental Plates
  • - Flow Measurement of dirty and contaminated fluids
    - Flow metering of fluids with suspended solids or entrained gas
Models Suitable for your need
  • AB400# Series Averaging Bar - Flange Mounted
  • AB400 R# Series Averaging Bar - Flange Mounted Retractable

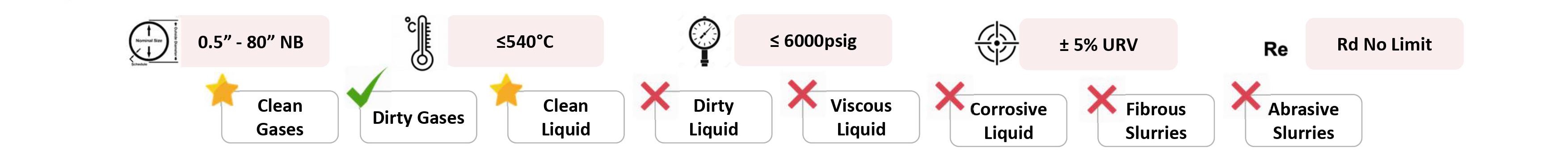

Averaging Bar – Retractable Design

  • EPC: Larsen and Toubro Ltd
  • DEC: Thyssenkrupp Industries India Pvt Ltd
  • Client: Bhushan Steel
  • Project: 3 X 275 TPH CFBC Boilers for Bhushan steal
  • MOC: SS316
  • Salient feature:
  • - Retractable design.
    - wet calibrated.
    - Also supplied Flow Nozzles and Aerofoils.
