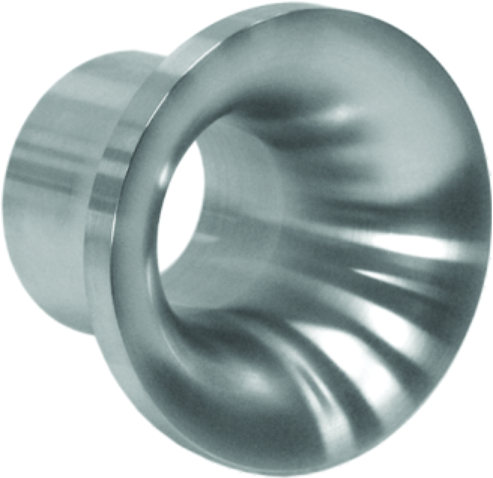

Long Radius Flow Nozzle

Flow Measurement Excellence
  • Hydropneumatics Orifice Plate range is the most cost-effective Differential Pressure Measurement in accordance with ISO 5167-2, ISO TR-15377, AGA3 and ASME MFC-3M.
  • These devices are low maintenance with no moving parts and easy to handle and simple to install and operate.
  • Available in MOC suitable to your process needs ranging from Austenitic steels, Nickel Alloys, PVC, PTFE and Stellate coated.
Available Designs / Customizations
  • Square Edge Orifice Plates
  • - Process Flow Measurement of hydrocarbons, most gases and liquids
    - Custody Transfer and fiscal flow metering
  • Simple measurement
  • Conical Entrance & Quarter Circle
  • - Flow measurement of viscous fluids
    - Applications with low Reynolds numbers
  • Eccentric Plates & Segmental Plates
  • - Flow Measurement of dirty and contaminated fluids
    - Flow metering of fluids with suspended solids or entrained gas
Models Suitable for your need
  • FN200 C# Series ISA 1932 Flow Nozzle with Carrier Ring
  • FN200# Series ISA 1932 Flow Nozzle with Flange Union
  • FN200 H# ISA 1932 Flow Nozzles - Holding Ring Type
  • FN400# Series Long Radius Flow Nozzles - Flange Mounted
  • FN400 W# Series Long Radius Flow Nozzles - Welded
  • FN400 H# Long Radius Flow Nozzles - Holding Ring Type
  • FN 500# Series PTC19 Primary Flow Section with Plate Type Straightener

Long Radius Flow Nozzle

  • Client: Invensys, Mumbai
  • Project: CGPL (TATA Power) 5 X 800MW, UMPP at Mundra.
  • Consultant: TCE Bangalore

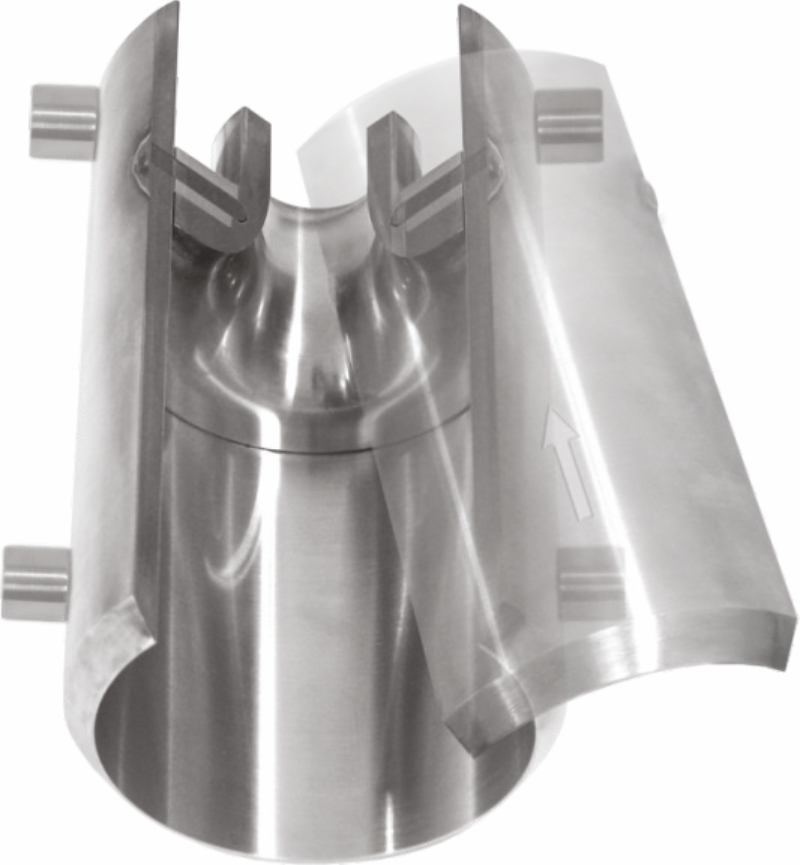

  • Description: Long radius Flow Nozzle, Welded design as per ISO 5167.
  • MOC: A182 F316L Element and A106 Gr B Pipe.
  • Salient feature:
  • - 3.5” wall thickness
    - Hydrostatic pressure test at 410 bar
    - Butt welded end connection as per ASME B16.25.

Long Radius Flow Nozzle in P91 Nozzle

  • Client: Yokogawa Iberia
  • Project: Shams Solar power plant , Dubai
  • EPS: Abener.
  • MOC: F316L Nozzle Element welded to A335 Gr.P91 Pipe. Process connection 24” ANSI 1500# WNRTJ flanges in A182 F91.
  • Salient feature:
  • - Established WPS for SS316 to Gr 91 weld joint using Inconel overlay.
